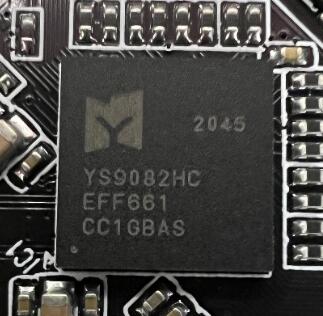

得一微YS9082HC主控固态硬盘不识别数据恢复当前比较困难，当前在朗科、铨兴（QUANXING）、亿储、台电(TECLAST)稳影、赛思永盛等固态硬盘都有使用

固态硬盘Indilinx Everest 2主控型号为IDX400M00-BC数据恢复采用拆取芯片，进行重组数据，当前无法通过加载固件方式恢复

PC-3000 Mobile 版本的新软件版本 2.2. 在新版本中，我们切换到了新的开发环境。此过渡的主要目标是发布64位版本。此外，使用新的现代开发环境为使用软件开发技术开辟了更多机会，使您能够快速有效地为 PC-3000 Mobile 综合体添加新功能。所有注册用户都可以从技术支持门户上的个人邮箱下载安装文件。 注意！在安装此版本之前，建议： --关闭 PC-3000 移动软件 --确保任务管理器中没有正在运行的应用程序实例。如有必要，强制终止它们。 --手动删除程序以前副本的所有目录。 --然后重新连接 PC-3000 Mobile 的电源！ --运行所需位深度的安装。

Samsung Phoenix主控（S4LR020）主控不识别数据恢复，出现逻辑性死循环或固件故障导致扇区只读等故障,三星固件加密以及当前技术突破有限，只能解决极其有限的一部分，数据恢复工作异常困难。

我们已经准备好PC-3000 Flash 8.0.x 软件的更新版本并将其上传到支持门户。 在新版本中，我们切换到了新的开发环境。此过渡的主要目标是发布 64 位版本。此外，使用新的现代开发环境为使用软件开发技术开辟了更多机会，使您能够快速有效地向 PC-3000 Flash 复合体添加新功能。 该版本包括以下更改： 补充： 固件支持已添加到 Sandisk MLC 分析算法： COLB1S5211C0o30h, COLB1S5211C0o30o, COLB1S5211C0k30c, COLB1S5211C0o30j, COLB1S5211C0f30s,PHNX2S4311C0d30m, COLB1S5211C0o30l, COLB1S5211C0f30k, COLB1S5211C0k30a, COLB1S5211C1c30c, 00ADP02X. 固件支持已添加到 Sandisk TLC 分析算法： 00ACQ00X, 00ACQ01X, 00ACP01X, 00ACP02X, 00ADQ02X, 00ACQ03X, 00ADP02X, 00ACP03X, COLB1S5211C0i30w, COLB1S5211C1g30j, COLB1S5211C0r30x, COLB1S5211C0i30w, COLB1S5211C0l30n, COLB1S5211C1i30u, COLB1S5211C1i30u, COLB1S5211C0i30c, COLB1S5211C0v30o, PHNX2S4311C0a30w, COLB1S5211C1g30h, COLB1S5211C1s30z, COLB1S5211C0r30q, COLB1S5211C0t30l, COLB1S5211C0v30n, PHNX2S4311C0c30x, COLB1S5211C0s30j, COLB1S5211C1a30v、COLB1S5211C0s30s、COLB1S5211C0r30p、COLB1S5211C1h30s SanDisk TLC/MLC 算法改进了结构类型检测。 部分支持 453C98B3 766B 内存驱动器添加到 SanDisk TLC/MLC 算法 修复： 修复了在异或切削刀片模式下显示十六进制转储时导致在转储的第一行上绘制的错误。 修复了在过电流情况下打开存储卡时导致无法重新初始化的错误。 修正了在变换图的第一行启动的算法的自动检测错误。 修复了查看解决方案和重现解决方案的错误。 通过电源适配器窗口固定电压设置错误， 添加了一个菜单，用于使用工具栏上的按钮快速访问适配器参数 修复了在页面格式向导的“重复次数”窗口中输入字母时的错误。 修复了 4 位总线的 MMC 协议的错误。 内存芯片参数中的固定电压编辑。 新增资源： 静态异或： IS917 黑=128 PG=17600 (1094x16+32) F73C46 SM3281 黑=3072 PG=18592 (32+1150x16+32) PL0 V2 SM3281 黑=3072 PG=18592 (32+1150x16+32) PL1 V2 SM3281 黑=3072 PG=18592 (32+1150x16+32) PL2 V2 SM3281 黑=3072 PG=18592 (32+1150x16+32) PL3 V2 CBM2199 黑色=256 PG=18592 (1138x16) EEBB0C FC1179 黑=128 PG=18592 (1154+7x1150)*2 F5FB07 SM3268 黑色=256 PG=18432 (1126x16+31) PS2251-09 黑色=256 PG=18432 (1138+15x1134) 9A9EF0 AU699x BLK=1152 PG=18432 (1138x16) 数据 SSS6137 黑色=786 PG=18432 (1218x15) PS2251-09 BLK=256 PG=17760 (1110+1104x15) 9A9EF0 SM2704 黑=512 PG=18592 (1150x16+31) ECC SM2704 BLK=512 PG=18592 (1150x16+31) 数据 SSS6698 黑色=256 PG=17664 (1096x8) 809E9C SM2702 黑=256 PG=17920 (1108x16+31) 2850B8 SM3257 黑=256 PG=17600 (1094x16+24) 4C912A SSS6132 黑色=2304 PG=18432 (1218x15) 9A860F AU699x BLK=768 PG=18432 (1138x16) 数据 AS MSD BLK=256 PG=17664 (1098x16)_AF9E02 IS918 BLK=4608 PG=18592 (1158+15x1150) IN SSS6132 黑色=256 PG=18432 (1218x15) 9A860F SM3267 黑=576 PG=18432 (1138x16+27) D7AF47 AU600x 黑色=256 PG=17760 (1110x16) ECC AU600x BLK=256 PG=17760 (1110x16) 数据 IS916 BLK=256 PG=17664 (1094x16+24) C3A7EE CBM2199 BLK=64 PG=4320 (1080x4) SM2702 黑=256 PG=17920 (1108x16+31) FE1705 SA IS917 BLK=384 PG=18432 (1142x16+32) PS2251-09 BLK=576 PG=18432 (1151+15x1143) 9A9EF0 DM NN BLK=256 PG=18048 (1126x15+1130) 1775CE IS918 BLK=5184 PG=18656 (1158+15x1150) SM3281 黑=2304 PG=18592 (32+1150x16+32) E8018F PS2251-08 BLK=256 PG=18272 (1148+15x1140) FA9E80 ITE11xx 黑色=1024 PG=18592 (1150x16) AU699X BLK=792 PG=17920 (1110X16) ECC AU699X BLK=792 PG=17920 (1110X16) 数据 SM3257 黑=256 PG=17600 (1094x16+27) 4C912A SM3281 BLK=1152 PG=18432 (32+1140x16+32) 请求 SM3257 黑=256 PG=8832 (1094x8+27) SM3281 黑=1152 PG=18432 (32+1140x16+32) PL0 SM3281 黑=1152 PG=18432 (32+1140x16+32) PL1 SSS6697 黑色=258 PG=9216 (1140x16) SM2236 黑=128 PG=17760 (1106x16+18) AU699X 黑色=128 PG=8640 (1078x8) AU699x BLK=1728 PG=9296 (1138x8) 数据 SM3281 黑=768 PG=18432 (32+1142x16+32) PL0 SM3281 黑=768 PG=18432 (32+1142x16+32) PL1 SM3281 黑=768 PG=18432 (32+1142x16+32) PL2 SM3281 黑=768 PG=18432 (32+1142x16+32) PL3 SSS6131 黑色=384 PG=18432 (1140x16) AU6989 PG=18592 黑色=256 (1162x16) 数据 PS2251-67 BLK=1 PG=8640 (1083+7x1077) FC1179 黑=128 PG=18432 (1146+7x1142) x2 21CDD8 v1 SM3257 黑=64 PG=17664 (1088x16+27) ITE11xx 黑色=256 PG=17664 (1104x16) SSS6132 黑色=576 PG=18432 (1218x15) 80809E9E CBM2199 黑色=512 PG=18592 (1096x16) CF7ED4 CBM2199 BLK=64 PG=4320 (1078x4) SM3267 黑=256 PG=8832 (1100x8+27) D7AF47 PS2251-70 BLK=384 PG=18432 (1138+15x1134) PS2251-70 BLK=768 PG=18432 (1148+15x1144) 内存芯片，读取参数。 AD3C15AB 海力士 H27Q1T8YEB9R AD3C15AB 海力士 H27Q1T8YEB9R C2D3D195 英飞凌 MX60LF8G18AC 454C9493 闪迪 STDNSGAMA-016G 98489AB3 东芝 Noname 128GB 89A46432 英特尔 6WB2D_NW817 45DA84A5 闪迪 SD0EAHCH-256 453EA693 闪迪闪迪 64Gb 454C9A92 闪迪 SDTNPNCHEM-016G 454899B3 闪迪 Noname 128G 2CBA9055 美光 MT29F2G16ABBEA 2CBA9055 美光 MT29F2G16ABBEA 453EA693 闪迪闪迪 64Gb 2CA4E53C 美光 MT29FxxG08CxxAB 2C844434 美光 MT29F128G08CBCEB ECDC14A5 三星 K9G4G08U0B 89C41832 英特尔 MT29F512G08EBHBF 454899B3 闪迪 Noname 128G 453CA593 闪迪 SDWNRHxRx_xxGUx 453CA593 闪迪 SDWNRHxRx_xxGUx 453EAAA2 闪迪 SDT 7E51 453CA9A2 SanDisk闪迪Monilith 453CA9A2 SanDisk闪迪Monilith 453CA9A2 闪迪 闪迪 TSOP48 453CA9A2 闪迪 闪迪 TSOP48 98D79983 东芝 TH58NVG6T2DTG20 2C84C434 美光无名 983E98B3 东芝 TC58LJG9T24TA0D_64GB B5646456 Spectek MT29F64G08CBEFB NAND芯片页的ECC格式： 18592;16-1138; 18432;1138;15-1134; 17760;1110;15-1104; 17600;16-1094;27; 18432;16-1138;27; 17760;16-1110; 17920;16-1108;31; 18432;16-1142;32; 18048;15-1126;1130; 18656;1158;15-1150; 18272;1148;15-1140; 17920;16-1110; 17760;16-1106;18; 9296;8-1138; 18432;16-1140; 8640;8-1068; 18432;1146;7-1142;1146;7-1142; 18432;1148;15-1144; 动态XOR及其应用的算法： 煤层气：128_8640_1080x8 - 2 PHISON BLK=516 PG=9216 (1144x7) BASE+EXT 煤层气：64_4224_1056x4 - 6 煤层气：64_18432_1144x16 - 6 如果有活动的软件更新，所有注册用户都可以从 支持门户上的个人邮箱下载安装文件。

我们已准备好PC-3000 和数据提取器软件的更新版本并将其上传到支持门户： 发布 PC-3000 版本 7.1.4 数据提取器版本 6.1.2 PC-3000 固态硬盘 3.0.4 发行版 _x64 和 _x86 可供下载和安装。我们推荐安装_x64版本，推荐的Windows版本是Win10。 如果有活动的软件更新，所有注册用户都可以从 支持门户上的个人邮箱下载安装文件。 PC-3000 WD Marvell 硬盘 新增“解锁 SED HDD”模式以解锁 techno 模式 WD SED HDD，家族：Palmer、Charger、SpyGlass2、Venice、VeniceR、Carmel、CarmelR； 具有 512 KB 和 1 MB ROM 的 WD SED 驱动器的解锁模式； 增加了对 3.5" CarmelR 和 Tresul 系列的支持； 对于 Carmel 系列，模块 190 的读取已修复（只读取已使用的扇区）； 改进了“二级译员阅读分析”模式。添加了转换器数据比较模式。增加了翻译器“树”的参数说明及检查； x64版本修复了加密磁盘输入密码的BUG； 修复了编辑模块头的错误； 改进了调整大小和移动 SA 模块的模式。现在您可以移动多个模块。 希捷 F3 硬盘 增加了对 Cimarron(B5) 系列的支持； 在测试菜单中添加了“将转换器加载到 RAM”、“将 MCMT 加载到 RAM”，以便与转换器一起工作； 在测试菜单和 DE 实用程序的操作中添加了“将写入锁加载到 RAM 并从 MCMT 中将 TRIM 记录排除到 RAM”； 在使用 ROM 和自动初始化的向导中，重置了 Moose、Crockett、Desaru、Brinks、Casey、Muski、Wyatt、Holliday、Pharaoh、Hepburn、Mantaray、Julius1、SAPta15、Bogart 家族的设备故障标志； 在“加载自适应到 RAM”模式下使用 ROM 和自动初始化的向导中，添加了将驱动器切换到命令模式并在进程结束时停止引擎的能力； 改进了 MCMT\Edit 插件，可以更完整地分析完整性并在恢复损坏的 MCMT 时获取必要的信息； 在 DE 中构建头部图时，添加了在操作期间停止主轴的功能 (TechSpinDown)； 护照编辑新增“TLER/ERC/RTL”控制； 在终端编辑护照中添加了使用 T>F 命令键的功能； 使用护照的模式已切换到一个对话框，可以选择哪些参数可以编辑，哪些参数可以“原样”保留； ROM 参数编辑器已重新设计。增加了QNR容器版本的编辑（允许您选择固件的活动实例），逻辑头图的编辑器与物理卡的依赖解耦（如果找不到物理卡，您可以编辑逻辑图); 添加了“编辑 SAP FLAGS”实用程序操作 - 从 RAM 中的 ROM 编辑参数 - SAP.Flags、RRO 模式、Seek Flags（Slow Seek，在 OD 处停止校准）； 添加了绕过代码内存写锁 sgm0 的方法（用于禁用高级加载程序负载控制）； 现在，当“通过实用程序读取”时，每次激活模式时，不一定通过 Saved Mode Pages (2A) 模块重新扫描 Media Cache 参数； 在 ROM 向导中，当从 Sys-file 成功读取数据映像时，会记住其标识符（vol / fid / copy）以供后续记录； 更改了默认选择要跳过的 Sys-files 的算法，由跳过非关键文件按钮触发； 修复了“Rosewood AF”系列的 ROM 阅读器。以前，尝试在不切换电源的情况下第二次读取或写入 ROM 会导致 HDD 冻结； 相比第一个版本7.0.x，ROM读取算法进行了优化（加速）； 修复了在某些情况下，导致无法通过终端将写阻塞模块加载到 RAM 中的问题； 修复了在法老家族上应用“清除 CE 登录 ROM”补丁时导致 ROM 损坏的错误。 三星硬盘 芒果家族 修复了格式化开始时导致实用程序冻结的错误； 万古家族 修复查看ROM转储信息时出现“Invalid string value "A" (FW36)”错误； 修改护照数据的算法； M6S_2D 系列： 修复了某些驱动器上的 ROM 解析错误。 三星硬盘，PC -3000 Portable-III版本 对于 Portable3，具有 PATA 接口的驱动器系列已被删除，因为在此平台上无法使用它们。 东芝硬盘 添加了对系列的 2 字节 CP（配置页面）的支持：MQ01AAD、MQ01ABDH、MQ01ABD、MQ01ABFH、MQ01ABF、MQ01ACF、MQ01UBD、MQ02ABDH、MQ02ABF、MQ03ABB、MQ03UBB、MQ04ABD、MQ04ABF、MQ04UBD、HDWE1 MQ03、UBACA、HDWE1 , HDWQ1; 添加了从 ROM 中提取 CP 列表的插件。 HGST-IBM-ARM 硬盘 改进了通过多个参数自动检测系列的程序，现在显示系列的工厂名称。 HGST-IBM-M28 硬盘 对于自定义系列，添加了描述头部图在 NV-RAM 图像中的位置的功能。 迈拓硬盘 修复了加载 LDR 和启动自动恢复模式的错误。 PC-3000核心 修复了从文件加载错误处理脚本的错误； 加载时添加了额外的脚本兼容性控制（对于脚本需要运行实用程序的情况）； 对于 PC-3000 Portable III 复合体，增加了在 USB2.0 端口或兼容模式下运行的能力。 工具包 PC-3000 添加了对个人资料名称和目录的国家字符的支持； 对实用程序的界面进行了一些改进（使用 Ctrl+W 关闭选项卡，在 DE 任务中添加了一个切换按钮，在实用程序关闭时切换到实用程序菜单）。 数据提取器 添加了对 LVM2 精简卷的支持。 参考：要在 LVM2 磁盘上添加“精简”卷，您需要运行“LVM2 元数据扫描”（第一次“访问”磁盘时会自动提示您执行此操作）； 扫描后，如果磁盘上有精简卷，则会出现磁盘菜单项“添加精简卷”。单击此按钮将开始扫描所有“精简”磁盘卷的元数据。如果 LVM2 显示过滤器设置为“显示唯一”或“全部显示”，则将解析所有可用版本的精简卷并添加所有可能的磁盘。在这种情况下，当向任务添加新磁盘时，其名称将指示 LVM2 元数据版本。如果“瘦”卷位于多个物理磁盘上，则必须将所有磁盘添加到任务中，并且必须对它们执行“LVM2 元数据扫描”。添加精简卷从包含精简元数据的磁盘开始 卷（该部分的名称中包含后缀“_tmeta”）。在具有精简卷元数据的分区上，您可以通过在上下文菜单中选择适当的项目来构建“精简”卷元数据映射。 基于地图创建的磁盘的地图编辑模式，使用来自虚拟文件系统的数据（任何分析的结果）和草稿源磁盘（或其区域）的结果自动生成地图的方法添加。该模式可从相应虚拟文件系统的上下文菜单中获得。该模式可用于“构建”文件位置信息丢失的虚拟机，或“构建”内部翻译服务信息损坏或丢失的动态虚拟机； 修复了将文件报告导出为 csv 格式的方法中的错误，该错误在选择 HASH 和字段的情况下发生。新增 SHA256 计算； 进程终止错误已修复。以前，在某些情况下，当中断多遍复制过程时，无法退出该模式； 修复了一个错误，无法将扇区大小更改为不是 512 的倍数的值； 修复了将 UTF8 字符串转换为 UNICODE 的错误，当程序在非俄语和英语的本地化（以日语出现）的 Windows 下运行时，该错误表现在使用某些文件系统（XFS、EXT、UFS、RFS）。一些文件和目录名称被破坏； 修复了基于地图的磁盘编辑模式中的错误。 ReFS 文件系统 添加了生成已占用/未占用地图和元数据的功能； NTFS 文件系统 修复了64位版本在地图分析结果中生成部分碎片文件时出现的bug（地图中只有第一条链）； 修复了 64 位版本 PC3000 的“自动搜索 EFS 安全证书”的“访问冲突”错误。 PC-3000 固态硬盘 群联 增加了对 PS5016 控制器（宇瞻 AS2280Q4、AORUS ASM2NE6）的支持； 改进了所有控制器的装载机选择算法； 使用 SSD 配置文件的算法已得到改进。现在，在 LDR 模式下创建和选择 SSD 配置文件时，标识数据取自 CP 8002。这允许您创建具有唯一名称的配置文件。 控制器 PS3111 添加了新的装载机； 改进了带有 SBFMBA.x 固件的驱动器的转换器构造算法； 修复了在某些 FW 上构建翻译器的错误。 控制器 PS5013 改进了构建翻译器的算法。 Silicon Motion SSD 控制器SM2263XT _ 修复了构建翻译器时的“位索引超出数据”错误。 控制器 SM2259XT 添加了新的装载机。 PC-3000 SAS HGST SAS 硬盘 添加了家庭支持：HUH7210xALx20x (AriesHC10)。 希捷 SAS 硬盘 使用 Flash ROM 映像： 改进/修复“补丁”算法； 为 EP.v8 Thunderbolt5xxe 系列添加了补丁类型 2； 添加了“显示信息”按钮，在日志中显示有关已加载 ROM 的信息。 如果有活动的软件更新，所有注册用户都可以从 支持门户上的个人邮箱下载安装文件。 过时的硬件和软件系统 PC-3000 for Windows UDMA (PCI), PC-3000 SCSI, PC-3000 Portable ver. 1.0 不接收新的软件版本。

The ACE Lab developers constantly research drives, which results in a rapid expansion of the Support List for most of the modern SSDs. So with the PC-3000 Systems that support Solid State Drives, you will always be on the cutting edge of data recovery technology! The PC-3000 SSD/Ultimate Systems contain one of the following software add-ons:  ► PC-3000 SSD (for the PC-3000 Express/UDMA System, software ver.6.9.x) ► PC-3000 SSD Extended (for the PC-3000 Portable III System, software ver.6.9.x) The PC-3000 SSD Extended is the new software add-on that supports the widest range of SSD types: SATA, mSATA, M.2 SATA, M.2 PCIe NVMe/АHCI, PCIe x16, Apple Macbook, LIF, ZIF, PATA. The PCIe drives are connected via the special adapters from ACE Lab:

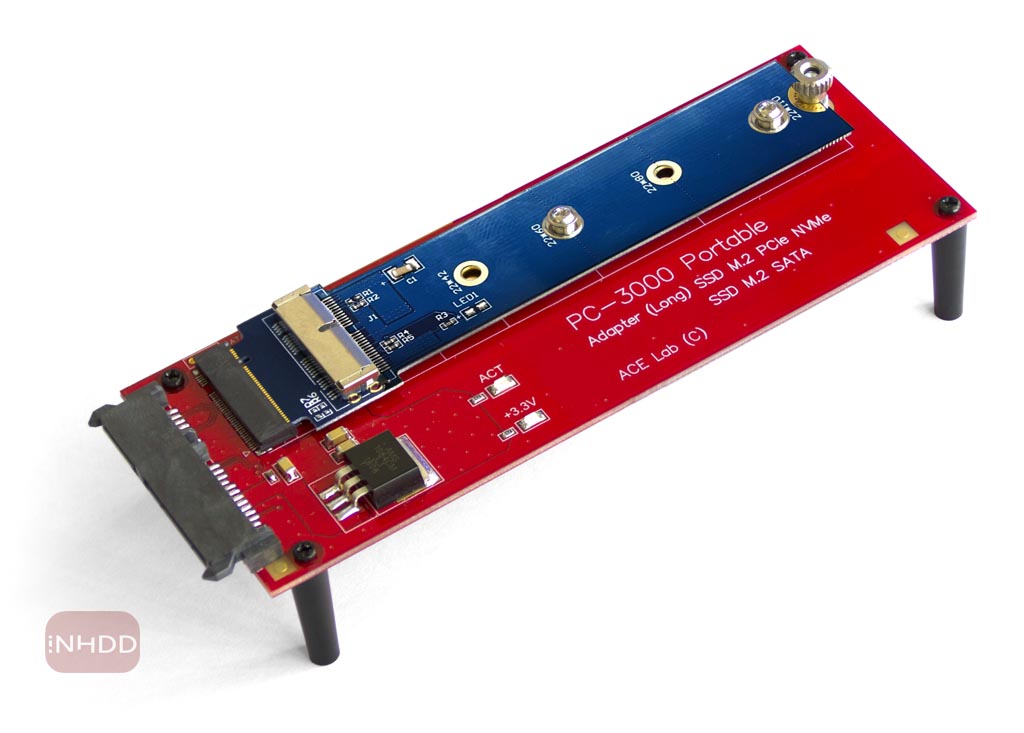

M.2 PCIe NVMe/AHCI SSD & M.2 SATA SSD adapter	PCIe NVMe/AHCI Adapter for Apple Macbook SSD	PCIe x16 SSD Adapter

The current version of the PC-3000 SSD/PC-3000 SSD Extended software is 2.10.3. When recovering data from Solid State drives you should keep in mind the following: ► You can recover data only if there are no issues with the hardware of an SSD. The CPU, NAND memory chips, and PCB should be in good condition. This means that, when you power on the SSD, the ATA registers should display a status. The drives might be in the BSY state, or they might return the wrong capacity / ID, but they should give a response. ► The PC-3000 SSD/PC-3000 SSD Extended software add-on supports the combination of the Firmware (Manufacturer) and the controller (CPU). Some manufacturers use the same controllers with a different Firmware, with different technological commands so that such drives might be unsupported. E.g. fully supported Marvell 88SS9174 controllers are used in the Micron, Plextor, and Crucial drives, that all have similar FW. But some of the Lite-on SSDs based on the same 88SS9174 CPU are not supported because their firmware microprogram is completely rewritten by the Lite-on company. At the same time, modern families of Silicon Motion and Phison drives have the default SM22xx and PS31xx platforms which are very similar. So, if you get any drive based on the PS3111 controller, it would also be supported, even if such a model is not present in the Support List. M.2 interface difference – PCIe NVMe M.2 and SATA M.2   ► NVMe M.2 supported only by PC-3000 Portable III tool! ► SATA M.2 supported by PC-3000 UDMA-E, Express and Portable III.   The list of supported drives grouped by Utilities:

Family	Model
PCIe SSDs supported by the PC-3000 Portable III Systems
NVMe Silicon Motion Family: SM2260 SM2263XT SM2262ENG HPH8068	ADATA XPG SX7000 VIDEO!
	HP EX900
	Lexar NM600
	Patriot Hellfire
	Radeon R5
	Transcend MTE110S
	Zion NFP03 (NeoForza)
NVMe Phison Family: PS5007 PS5008	Apacer A52280P2
	Gigabyte GSM2NE8
	Kingston A1000
	Kingston KC1000
	LiteON MU X
	Patriot Hellfire M2
	Patriot Scorch M2
	Smartbuy M8
	+ many other PS5007 and PS5008-based SSDs
NVMe Marvell Family: 88SS1093	Plextor M9Pe WD Black G1
SATA SSDs supported by the PC-3000 Portable III Systems, PC-3000 Express Systems, PC-3000 UDMA Systems
Silicon Motion family: SM2246XT P3XV60 SM2236G SM2246EN SM2256K SM2258G SM2258XT SM2259XT CS4341AA(SM2258XT) H6008 G(SM2258XT) ARTICLE!	ADATA SP550
	ADATA SU650 (SM2258XT)
	ADATA SU800 (SM2258G) VIDEO!
	AMD Radeon R3 (SM2256K)
	Apacer AS350 Panther
	AMD Radeon R5
	CFast Lexar Professional 3400 (SM2246XT) CFast AV Pro CFast Card (SM2246EN)
	Corsair Force LX
	Crucial BX100
	Crucial BX500 (SM2258XT)
	KingDian S200
	Kingston  SA400S37 (CS4341AA = SM2258XT)
	KingSpec PA25 (SM2236G)
	Lite On LCH-256V2S-11 ARTICLE!
	Patriot P200
	Plextor M6V
	Plextor S2C
	PNY CS1111
	RevuAhn 850X
	RevuAhn 900T PRO
	RevuAhn 885
	Sandisk SSD Plus (SM2246XT)
	Silicon Power Slim S55 (SM2258XT)
	KingSpec MT-128 (SM2258XT)
	Silicon Power S55 (SM2259XT)
	Transcend TS256GSSD360S (P3XV60 =SM2246XT) Smartbuy Jolt WD Green (SM2258XT) KingSpec P3 (SM2259XT) KingSpec MT-128 (SM2258XT) + many other drives based on SM2246EN/XT (except for the Intel modifications which are not supported!) and SM2258XT
Phison family: PS3105 PS3108 PS3109 PS3110 PS3111 TC58NC1000 TC58NC101068B CP33238B AS2258 Transcend       02-3010 ARTICLE!	Corsair Force LS VIDEO!
	Corsair Nova
	Crucial V4
	GOODRAM CX100
	GOODRAM CX300
	GOODRAM S400U
	Kingston A400
	Kingston HyperX Savage
	Kingston SMSM15S3
	Kingston SSDNow KC400
	Kingston SSDNow UV300
	Lite-On MU3
	OCZ (Toshiba) Trion 100
	OCZ (Toshiba) Trion 150 Toshiba TR200
	Patriot Blast
	Patriot Blaze
	Patriot Spark
	QUMO Novation 3D (AS2258)
	Seagate Fast SSD
	Seagate One Touch SSD
	Silicon Power Slim S55 (PS3109)
	Silicon Power Slim S55 (PS3111)
	Silicon Power Slim S60
	Smartbuy Firestone
	Smartbuy Ignition 2
	Smartbuy Ignition 4
	Smartbuy Revival
	Smartbuy Revival 2
	Smartbuy S11T
	Smartbuy S9M
	Toshiba Q300
	+ many other drives based on PS3105/PS3108/PS3109/PS3110/ PS3111/Toshiba TC58NC1000/Kingston CP33238B CPU!
Marvell family: 88SS9174 88SS9187 88SS9189 88SS9190 88SS1074 ARTICLE!	Crucial C300
	Crucial C400
	Crucial M4
	Crucial M500 Partial support!*
	Crucial M550 Partial support!*
	Crucial MX100 Partial support!*
	Crucial MX200 Partial support!*
	Intel 510 Partial support!*
	Micron C300
	Micron C400
	Plextor M3 Pro Partial support!*
	Plextor M3 Partial support!*
	Plextor M5 Pro Extreme Partial support!*
	Plextor M5 Pro Partial support!*
	Plextor M5S Partial support!*
	Sandisk Genesis Partial support!*
	Sandisk SSD Plus (88SS1074 MOD) ARTICLE!  Full support!**
	Sandisk Ultra II ARTICLE! Full support!**
	Sandisk Ultra Plus Partial support!*
	Sandisk Vulcan Partial support!*
	Sandisk X110 (M.2 2260) Partial support!*
	Sandisk X300 Partial support!*
	WD Blue ARTICLE! Full support!**
	*Except for the BSY state drives **For Marvell 88SS1074 the Terminal 3 adapter is required!
Samsung family: S3C29MAX01 S3C29RBB01 S4LJ204X01 S4LN021X01 S4LN045X01 S4LN054X02 ARTICLE!	Samsung 470 S3C29MAX01-Y340 CPU based (including Apple models)
	Samsung 830 S4LJ204X01-Y040 CPU based (including Apple models)
	Samsung 840 S4LN021X01-8030 CPU based
	Samsung 840 Evo ARTICLE! S4LN045X01-8030 CPU based (including mSATA)
	Samsung 840 Pro S4LN021X01-8030 CPU based
	Samsung 850 Pro S4LN045X01-8030 CPU based
	Samsung CM871 S4LN054X02-Y030 CPU based
	Samsung MLC S3C29RBB01-YK40 CPU based
	Samsung PM810 S3C29MAX01-Y340 CPU based (mSATA version of 470)
	Samsung PM830 S4LJ204X01-Y040 CPU based
	Samsung PM840 S4LN021X01-8030 CPU based
	Samsung PM841 S4LN021X01-8030 CPU based
	Samsung PM851 ARTICLE! S4LN045X01-8030 CPU based (including mSATA)
Indilinx Barefoot family: IDX110M00 IDX110M01 IDX110M02 ARTICLE!	Corsair Extreme series
	Crucial M225
	OCZ Solid 2 series
	OCZ Vertex 1
	+ all other drives based on IDX1xXX CPU!
OCZ Barefoot 3 family: IDX500Mxx ARTICLE!	AMD Radeon R7
	OCZ ARC 100
	OCZ Vector VIDEO!
	OCZ Vector 150
	OCZ Vector 180
	OCZ Vector 480
	OCZ Vertex 450
	OCZ Vertex 460
	OCZ Vertex 460A
Intel family: PC29AS21AA0 ARTICLE!	Intel 320
	Intel 710
	Intel X18
	Intel X25

List of Apple devices you also can find right here. P.S. We get a lot of questions about the SandForce SSDs. These drives have a very complex internal structure with full hardware encryption of all logical structures. This means that such drives completely encrypt all data in Firmware and in the NAND memory chips. If you try to unsolder the NAND Flash chips from a SandForce-based SSD, you will find that all information is completely encrypted with the AES-256 key. There is no way of getting data from such SSDs at the moment, but we continue our research. Here you may find the model list of the SandForce SF CPU-based SSDs. If you have any questions regarding your data recovery cases, you’re welcome to address them to the Technical Support department.

• PC-3000 Express/UDMA-E/Portable Ver. 6.6.29
• PC-3000 SAS Ver. 6.6.29
• Data Extractor Ver. 5.9.15

• Data Extractor RAID Edition Ver. 5.9.15
• PC-3000 SSD Ver. 2.7.8

All authorized technical support users will get the latest software versions.

A SHORT LIST OF THE MAIN ENHANCEMENTS:

PC-3000 HDD (Express, UDMA, Portable)

WD Marvell

• Added the decryption of user data function for new families (SpyGlass, Palmer, etc.);
• Added ROM building from SA data for Palmer family (it’s now possible to use "unlocked" PCB without re-soldering the ROM);
• Added Heads map changing in RAM feature for SpyGlass and Palmer families;
• Added Heads map building option for SpyGlass and Palmer families.

Seagate F3

• Added a Master of complex HDD initialization;
• Loader uploading with Disk FW and patching on the fly:
  • Init SMART Fail;
  • NoHOST-BSY 1/2;
  • WrProtect 87270000;
  • LOD check Err xxxx0800.

Data Extractor

• Replaced application memory manager. This manager is significantly faster, and, which is especially important for a long-running application, allocates memory of various size more optimally, which reduces the likelihood of memory fragmentation due to different allocation “lifetime”. The use of this manager significantly reduces the likelihood of misleading errors that show the lack of memory;
• Added the ability for USB devices, that are not connected through the utility, to apply hardware and software resets and include them in scripts.

"Quick Disk Analysis" mode

• Added search APFS partitions.

Virtual disk, encrypted FileVault

• Added support for disks without EncryptedRoot.plist.wipekey file.

File systems

APFS

• Added initial support for APFS file system;
• Encrypted volumes are now supported.

PC-3000 SSD

Phison controller utilities

• AS2258 controller chip drives (AMD Radeon R5, Qumo Novation 3D) are now supported.

PS3111 controller utility

• Renewed list of loader.

Silicon Motion controller utilities

• SM2236G (KingSpec PA25) is now supported.

SanDisk Marvell controller utility

• Added support for WD Blue SSD (Marvell 88ss1074);
• Added the extended mode for the following family drives:
  • Helen: X300, Ultra II (88ss9190);
  • Venus: Ultra II (88ss1074).

PC-3000 SAS

• Added compatibility between PC-3000 SAS and PC-3000 SAS 6 Gb/s with PC-3000 Express controller. Used in Data Extractor RAID Edition. Now 8 channels are available (4/8 SATA and/or 4 SAS);
• PC-3000 SAS 6 Gb/s power supply voltage threshold control has been added.



DETAILED LIST OF ENHANCEMENTS

PC-3000 HDD (Express, UDMA, Portable)

WD Marvell

• Added the decryption of user data function for new families (SpyGlass, Palmer, etc.);
• Improved ROM building from SA data;
• Added ROM building from SA data for Palmer family (it’s now possible to use "unlocked" PCB without re-soldering the ROM);
• Added Heads map changing in RAM feature for SpyGlass and Palmer families;
• Fixed issues with Heads map building and Slow Responding;
• Added Heads map building option for SpyGlass and Palmer families;
• The "Solve slow responding" and "Slow responding changes cancel" modes have been improved;
• Added heads zone selection filter for "Zones and heads inactivation" mode;
• Added a new option for hiding found defects "Logical scan" mode - "Hide defects as microzones";
• For "Physical scan" mode, auto-saving of performance diagrams for heads has been made;
• Function "Hide defects as microzones" has been added to the Defect list editor for LBA and CHS tables;
• Improved Active Utility actions mode in Data Extractor. Added a new action "Custom Scenario".

Seagate F3

• In HDD resources backup function, the valid copies switch is now used for Read Sys Files and Make loader;
• Added a new command to User command handler: "PWR_OFF" for switching HDD;
• Added an ability to view "Drive Tables" (DT) in Service information objects. It’s now possible to open selected object not only via DT command but also by viewing corresponding memory class (for example, Servo RAM for SAP);
• Added a Multi-tab editor "View SA resources";
• Added a Patch for bypassing LED:BC FAddr 4040;
• It is now possible to execute the entire list or one selected action from the pop-up menu by right click mouse button in DE Active utility actions list;
• Added an ability to run Utility with Terminal switched off;
• Improved a Boot Code starting dialog:
  • Added information fields Mdl / SN / FW / Log head map;
  • Decoded ROM data is now substituted into profile name fields;
• Sys file 3-30A added to default SA backup list;
• Ability to run in Boot Code mode added to the start dialog;
• Added a function to upload adaptives (CAP/RAP/SAP) from the image into RAM to Work with ROM tab;
• Added a Master of complex HDD initialization;
• All in one ROM patches:
  • Heads map changing;
  • Init SMART Fail;
  • NoHOST-BSY 1/2;
  • WrProtect 87270000;
  • UnlockTech;
  • YetiStopStart;
  • Kahuna CFW1.
• Loader uploading with Disk FW and patching on the fly:
  • Init SMART Fail;
  • NoHOST-BSY 1/2;
  • WrProtect 87270000;
  • LOD check Err xxxx0800.
• RAM/SA flag for overlays changes on the the fly;
• Post-process actions are performed:
  • Unlock;
  • Adaptives uploading from source;
  • Heads map changing;
  • Edit HDD ID (ATA / Terminal // SysFiles / "T>F").
• Added "Force Setup State" warning message in "Unlock Tech" for SED drives about deleting encryption keys;
• Added SysFile filtering by size (files larger than 128M are ignored);
• Changed a method of determining the part size of multi-block ROM;
• Changed a dialog to add defects to Non-Resident G-List;
• In Utility status, the buttons for detecting the size of the SA sector and Utility auto-initializing are now separated by "ATA" and "Terminal";
• Wherever the ROM is read, if you refuse to select a drive profile, saving now goes to the "@ROMBackup" folder in the root directory of the utility;
• Added an ability to disable the messages "For automatic Boot Code Mode ..." and "Remove short circuit from Boot Code..." when switching to the Boot Code (enabled from Utility settings);
• Added an ability to set Terminal transfer rate in Utility settings;
• In the passport editor, added the ability to skip the switching power after the changes;
• In the MCMT.Edit plugin, added the ability to mark as incorrect MediaCache descriptors that do not contain the flag-mark of the non-loaded extent;
• In the MCMT.Edit plugin, added the ability to edit the DiscDirtySegmentCount field;
• In the MCMT.Edit plugin, added the ability for records describing the read cache (committed) to remove the flag of their presence in MediaCache;
• The check for necessary GFD ROM block is added to the generator of the loader;
• Into the generator of the loader creation of a report about the included Disk FW, which is saved to a text file, is added;
• The ability to add to the previously created loader of the GFD block from the corresponding ROM is added to the loader editor.

Hitachi-IBM-ARM

• In the NV-RAM read dialog for the list of copies, HOT-KEYs has been added - “Select all”, “Select all”, “Invert selection”;
• In viewing SA objects, the restriction on the size of the PBA readable region (0xFFFF) has been removed.

Samsung

• Fixed the incompatibility with Windows XP for Samsung USB HDD utilities.

Utility PC-3000 ATA

• Modified logical scan. The parameter "Save defects" made as stored.

PC-3000 Kernel

• Added management "thresholds" for the supply voltage HDD for PC-3000 SAS 6 GB/s;
• Fixed an error backward compatibility with earlier versions of PC-3000;
• Modified "Download Microcode" mode, added saving the type of file loaded into the editor;
• A common error handling mechanism was made for drives connected to the PC-3000 controllers. The mechanism is currently used by the ATA utility (Logical Scan in All Utilities), WD Marvell and Toshiba. Script editing is possible in the utility settings mode (ATA, WD Marvell, Toshiba). The mechanism allows you to specify a set of actions, with the possibility of a conditional transition to the next, when the successful or unsuccessful completion of the current one. For experienced users, it is possible to implement their own actions on the principle of Plugin`s;
• Modified "Performance Chart" mode:
  • Eliminated the problem of "peaks" - points with abnormally high speed, which manifested itself during a scan with jumps;
  • Changed error indication.
• For the PC-3000 Express complex, changes were made in the mode of sharing the ports of the PC-3000 SAS controller and PC-3000 SAS 6GB;
• For all complexes, the identified problems were fixed when installing earlier versions of the complexes for another type of PC-3000 controller on the same computer;
• In the profile management system added checking the presence of the main directories;
• In the resource editor, the dialogs for saving/loading data to/from files were added in accordance with the type of resource being edited (as implemented in WD Marvell and Toshiba utilities);
• Translated to the hardware implementation of standard protocols. Indirectly, it concerns 100% of HDD operation modes;

Data Extractor

• Replaced application memory manager. This manager is significantly faster, and, which is especially important for a long-running application, allocates memory of various size more optimally, which reduces the likelihood of memory fragmentation due to different allocation “lifetime”. The use of this manager significantly reduces the likelihood of misleading errors that show the lack of memory;
• Added the possibility to work with the alternative maps filled in a process of reading/writing. A context menu of a particular drive (in explorer) is using for a map enabling/disabling. The analysis performs in a separate flow does not affect the read/write speed. There are added three types of maps:
  • Constant, based on the search of disk structure headers, file systems, and some useful file types;
  • Constant, based on the analysis of "entropy", useful in assessing the composition of readable data. May be used for the parameters of RAIDs with redundancy;
  • User, based on the GREP search. There is a special mode for the adding of similar maps realized, available from the main menu.
• Added implementation of combining user and supplied reference books of maps based on GREP;
• For alternative maps, added the ability to change the legend and view statistics;
• Added the ability to "switch" the "map" tab to view one of the additional maps (context menu) and observe its filling in the process of creating a copy of the data. Observing, for example, the "entropy" map, one can see that the data currently being read are of the same (zeros, pattern, encrypted ...) or diverse nature;
• Added the ability for USB devices, that are not connected through the utility, to apply hardware and software resets and include them in scripts.

Virtual drive map editing mode

• In the explorer and for the RAW results date added;
• Added selection of the RAW results for the metadata file system NTFS record type MFT;
• Added selection of RAW results for FAT file system metadata;
• Added new functionality for automatic search and use of unambiguous results of the RAW recovery (for jpg, jpeg, png, rar, zip, doc, docx, xls, xlsx files) to form the final map;
• Added the ability when using search results, to supplement the chain before it starts;
• Added the method of combining adjacent chains.

"View structures" mode

• Added the ability to navigate the structures of the FAT file system;
• Added support for the Ext file system (2,3,4) and the ability to navigate through its structures;
• Added support for the exFAT file system and navigation through its structures;
• Significantly accelerated the analysis of structures;
• Added a scrollbar in the HEX editor;
• Added display of service information for Flash;
• Fixed some display problems;

"Parallel viewing of data sources" mode

• Added the scroll bar to the HEX-editor.

New GREP search mode (available from map mode)

• Added the ability to build a map of search results (all or just marked ones);
• Added the ability to export search results to HTML and CSV (all or just checked);
• In the list of search results the LBA of the found match is displayed;
• In the HEX tab, if it is active, the data for the currently found match is displayed.

"RAW recovery" mode

• Added search BitLocker structures: VolumeHeader and Information and the method of adding a virtual drive based on them;
• Added a method of adding virtual partition APFS based on the structure of APFS Superblock;
• Mft entries are no longer divided into groups in a RAW recovery;
• Optimized the time for searching and parsing WSS (Windows Storage Spaces) metadata;
• Improved analysis of WSS metadata — more format versions are supported;
• Added search for APFS structures;
• Opening a file has been added to editing the map on the RAW tab;
• Removed the list update after opening the result file;

"Quick Disk Analysis" mode

• Added search APFS partitions.

DE-Storage format (* .deff)

• Optimized work with memory (Reducing the required amount of memory for simultaneous work with multiple storages);
• Increased speed of access to data storage;
• Fixed "freezes" (arising when working simultaneously with multiple repositories simultaneously);
• Fixed a bug that occurred in some tasks when reading from the DE-Storage format. After the message "Not enough memory for command performing" or message in log of file reading errors, the working has been impossible.

Virtual disk, encrypted BitLocker

• Added ability for AES-XTS partition decryption;
• Enhanced decryption.

Virtual disk, encrypted FileVault

• Added support for disks without EncryptedRoot.plist.wipekey file.
• Added a new type of virtual disk Virtual Drive - MAP Decrypted which is used for AES-XTS algorithm decryption;
• Conversion of legend from static to dynamic is defined by the utility. It distinguishes from standard legend and used by some SSD utilities;
• In GREP search a new option added for max LBA setting;
• Increased max jump size for reading error handling and loss of readiness (up to 2147483648);
• '!Problem' catalog is removed when there are no problem files;
• Added auto-detection of a plaintext HFS/APFS partition in Apple CoreStorage and ability to work with it in the initial partition;
• In parameters of export in .csv format, added options for column delimiter value and "quote" character;

File systems

APFS

• Added initial support for APFS file system;
• Encrypted volumes are now supported(user password is needed);
• Implemented ability for working with previous volume versions;
• Implemented ability to create disk decrypted by volume key (RAW recovery is available on this disk to search lost files);
• Added auto-detection and set by default the latest version of ContainerSuperblock;
• Added map creation method for Catalog Tree and FS Tree;
• Implemented detection and opening an APFS partition on 0th LBA of a disk and on the partition with unknown type;
• Implemented option for symlink saving in external file format;
• Added message for impossibility for map creation and saving of compressed files.

NTFS

• An improved way for database transactions allows to significantly speed up the rate of MFT scanning, Partition analysis and Analysis of found NTFS structures;
• Analysis of found NTFS structures is optimized for big data;
• Added deduplication support (files are saved via special service) for both native partitions and analysis results;
• Improved support for EFS.

FAT

• Improved algorithm for found files analysis, add a step for detailed analysis of files (via RAW recovery) without descriptors. For fragmented files part of the information was lost previously;
• An improved approach for big and long working catalogs dealing with features of ExFAT on Apple.

Ext(2,3,4)

• An improved way for database transactions allows to significantly speed up the rate of Partition analysis;
• EXT4 file system, support for resident (inline) files and folders have been added.

HFS+

• Option to build a map of FS Journal has been added;
• Scan method Catalog File + Journal has been added;
• The issue about incorrect file map (repeated chains) has been fixed;
• The issue about incorrect Extents File parsing in scan Catalog File mode has been fixed;
• The logic of processing files versions for scan modes has been changed (now the complex leaves in place the most recent version of the file from all versions with full placement).

DHFS4.1

• The issue about incorrect recognizing as ExtX in case of GPT has been fixed;
• Partition scan with video records has been improved.

BtrFS

• The metadata scanning algorithm is optimized for working with a large number of files;
• Fixed a problem with a lack of memory during operations with directories with large the number of files and folders.

ZFS

• Added support for zvol;
• Improved parsing of ZFS structures.

The EXT (2,3,4), UFS (1,2) and XFS

• The EXT (2,3,4), UFS (1,2) and XFS file systems, changes have been made to the analysis algorithm, a step has been added to more detailed parsing (with RAW recovery methods) of files whose descriptors have not been found, and definitions for them, if possible type, names and dates.

Error fixing

• E01(forensic) format export:
  • Fixed error for storage creation;
  • For pointing out the size equals 0, the storage is not divided into files.

RAID Edition

• Fusion drive based on APFS support has been added. APFS Fusion Drive in autodetection RAID config mode is supported now;
• WSS (Windows Storage Spaces) metadata support has been improved;
• APPLE Fusion drive analysis procedure has been improved;
• Dates and sort by them have been added in explorer of RAID creating form;
• The autodetection by RAID's metadata bypass the GPT partitions now, even if MBR was erased.

PC-3000 SSD

Phison controller utilities

• AS2258 controller chip drives (AMD Radeon R5, Qumo Novation 3D) are now supported;
• SSD drive's Translator file can be saved and loaded now;
• Compatibility with PC-3000 Portable 3 has been improved.

PS3110 controller utility

• New interleave type for high capacity drives has been added.

PS3111 controller utility

• Firmware version and WWN editor has been added in Drive ID editor menu;
• The manual interleave selector has been added;
• Drives with channels value are not multiple to 2 are supported now;
• Drives with blocked techno-mode are supported now (f/w ver.: 01.2, 11.2, 21.3, 61.2, 71.2, 91.2);
• Renewed list of loader;
• Translation tables detection algorithm has been improved.

Silicon Motion controller utilities

• SM2236G (KingSpec PA25) is now supported;
• Compatibility with PC-3000 Portable 3 has been improved;
• Windows XP compatibility has been improved.

SM2246XT controller utility

• 0х45DE94937657 chips data reading algorithm has been improved;
• Drives with "SLC only" reading mode are supported now.

SM2258G controller utility

• CP 8001 searching algorithm has been improved.

Marvell controller utilities

Plextor Marvel/Intel 510 controller utility

• "Unknown model" error appearing on utility launching has been fixed;
• Terminal mode operating possibility has been added.

Crucial/Micron Marvell controller utility

• Terminal mode operating possibility has been added.

SanDisk Marvell controller utility

• Added support for WD Blue SSD (Marvell 88ss1074);
• The status bar in utility has been added;
• Translator building algorithm has been added;
• Venus family drives (Ultra II with 88ss1074 controller) are supported now;
• Added the extended mode for the following family drives:
  • Helen: X300, Ultra II (88ss9190);
  • Venus: Ultra II (88ss1074).
• Translator building algorithm has been improved;
• Extended legend for maps in Data Extractor has been added.

PC-3000 SAS

• Added compatibility between PC-3000 SAS and PC-3000 SAS 6 Gb/s with PC-3000 Express controller. Used in Data Extractor RAID Edition. Now 8 channels are available (4/8 SATA and/or 4 SAS);
• PC-3000 SAS 6 Gb/s power supply voltage threshold control has been added;
• Physical scan mode for HITACHI drives has been added.

The following English, Japanese, Chinese and Korean software updates are released:

• PC-3000 Express/UDMA-E/Portable Ver. 6.5.14
• Data Extractor Ver. 5.8.5
• Data Extractor RAID Edition Ver. 5.8.5
• PC-3000 SSD Ver. 2.6.5

SHORT LIST OF THE MAIN ENHANCEMENTS:

PC-3000 HDD (Express, UDMA, Portable)

WD Marvell

• Support for the new Marvell 88i10XX and LSI TT67XX controllers has been added to the Boot-ROM mode;
• The data transfer speed has been increased in the Boot-ROM mode.

Seagate F3

• The Hex Editor plugins have been added to work with some versions of MCMT:
  • Parser: parsing of extents chain, search for the blocks which are not saved in the User Area, analysis of the descriptors for data stored in Media Cache, search for possible extents chains, map generation for the extents chains in Data Extractor;
  • Editor: editing the number of extents, the pointer of the first extent in a chain and table end block (TimeStamp/Data Version).

PC-3000 Kernel

• PC-3000 Express now works with the PC-3000 SAS ports in Data Extractor.

Data Extractor

• The new mode of parallel view of several resources has been added (available for RAID members, in a map mode for selected chains and in PC-3000 Flash).

RAW recovery

• The visual mode has been changed (list transfer uses low RAM value for a large number of files, changes of a working window design);
• More than 300 new GREP expressions of various file types have been added to the reference;
• The new algorithm to recover MOV files from the photo and video recorders has been added.

File systems

• The initial support for the DVR DHFS4.1 file system has been added.

RAID Edition

• The support for the Apple Fusion Drive has been added;
• The method for determining the type of service blocks (XOR, RS, HS) and their parameters (for RS) has been added to the matrix on the form of creating a new RAID.

PC-3000 SSD

Silicon Motion

SM2246XT controller:

• The following drives have been added to the Support List:
  • Silicon Power Slim S55
  • Silicon Power Slim S60
  • CFast Lexar Professional 3400x

SM2258 (G, H) controller:

• The following drives have been added to the Support List:
  • ADATA SU800
  • Plextor S2C

SM2246EN controller:

• The following drives have been added to the Support List:
  • RevuAhn 850X
  • RevuAhn 880K
  • RevuAhn 900T PRO
  • Corsair Force LX

Phison

PS3111 controller:

• The following drives have been added to the Support List:
  • Smartbuy Revival 2
  • Patriot Spark
  • Kingston A400
  • GOODRAM CX300
  • Silicon Power Slim S55 (PS3111)
  • Lite-On MU3
  • Silicon Power Slim S60
  • GOODRAM S400U
  • Smartbuy S11

DETAILED LIST OF ENHANCEMENTS

PC-3000 HDD (Express, UDMA, Portable)

WD Marvell

• Support for the new Marvell 88i10XX and LSI TT67XX controllers has been added to the Boot-ROM mode;
• The data transfer speed has been increased in the Boot-ROM mode;
• The functionality of S.M.A.R.T. clearing has been enhanced;
• The “Edit HDD ID” mode has been improved.

Seagate F3

• The Hex Editor plugins have been added to work with some versions of MCMT:
  • Parser: parsing of extents chain, search for the blocks which are not saved in the User Area, analysis of the descriptors for data stored in Media Cache, search for possible extents chains, map generation for the extents chains in Data Extractor;
  • Editor: editing the number of extents, the pointer of the first extent in a chain and table end block (TimeStamp/Data Version);
  • Import: load the extents list from an external MCMT file;
  • The Sys Files read and write procedures have been optimized;
  • The function to lower control of the loader uploading has been added in the Work with Flash ROM image file (changing in the drive RAM via the terminal according to the uploaded DiskFW code);
  • The function of adding a “Fake” sign has been added to the LOD editor (works in conjunction with the function to lower control of the loader uploading);
  • The button for a log of the ROM report has been added in the Work with Flash ROM image file;
  • The sorting of columns in the SA object bookmarks has been added;
  • The Sys LBA tab in the SA objects view with the functionality of subtracting an arbitrary SA region with the ability to select a readout strategy and receive data from the drive even in case of a read error (in the state the HDD could read);
  • The “read by one sector” reading has been fixed for the Indirect mode.

Hitachi-IBM-ARM

• The PBA filed view in the P-list sheet has been fixed.

Samsung

• Fixed the issue of “defects list edited” checkbox appearing from a simple view of the statistic;
• The Backup process algorithm has been improved.

PC-3000 Kernel

• PC-3000 Express now works with the PC-3000 SAS ports in Data Extractor;
• HDD/SSD Profiles. The storage of profiles has been completely redone, now there is no limit to the volume of the list;
• Profiles searching procedure has been changed, now you can see the list of what is found.

Data Extractor

• The new interactive mode has been added which allows to edit/form the drive created on the basis of the map (available from the context menu);
• The new mode of parallel view of several resources has been added (available for RAID members, in a map mode for selected chains and in PC-3000 Flash);
• The Firebird ver. 3.x is supported now. The tasks created in previous versions use ver. 2.x and are supported in the new version without conversion. This will increase the speed of data processing during the analysis and give access to the new features;
• The new option for storing the info about heads has been added due to the advent of the drives with more than 15 heads. Now attributes and the info about heads are stored in different files. An old option for storing the attributes is supported for previously created tasks. The number of buttons to control heads has been increased to 16;
• PC-3000 Express now works with the PC-3000 SAS ports in Data Extractor;
• The input file size in bytes, kilobytes, etc. has been added to the filter and file search;
• The ability to search for files with a size of 0 bytes has been added;
• The location of the database of tasks created in NAS has been changed (now it is not stored in the temporary Windows directory);
• The Calculator in the Sector field of the Sector editor has been added;
• The *.deff storage format has been optimized for memory and speed usage;
• The saving of the descriptor with the current sort for the map has been added;
• It is now possible to add encrypted drives to the menu of encrypted partition;
• The priority rules of saving files and folders have been changed. Now the subdirectory is being saved until the content is saved.

RAW recovery

• The visual mode has been changed (list transfer uses low RAM value for a large number of files, changes of a working window design);
• More than 300 new GREP expressions of various file types have been added to the reference;
• The new algorithm to recover MOV files from the photo and video recorders has been added;
• The search for Apple CoreStorage structures has been added (used for Fusion Drive and File Vault);
• New methods for Apple CoreStorage VolumeHeader structure have been implemented:
  • metadata map creation
  • physical volume map creation
  • logical volume map creation
• New methods for Apple CoreStorage have been added:
  • metadata map creation
  • physical volume map creation
  • logical volume map creation
  • virtual disk mapping (based on the logical volume map)
• View and edit of structures:
  • The support of the groups of parameters has been implemented - sets of named parameters transferred during the navigation, saved for shifts and used in scripts;
  • The support for the items based on the secondary data sources (including the sources located in the RAM) has been added;
  • The NTFS file navigation has been enhanced (using the groups of parameters);
  • The capability to customize an interface (the number of bytes in a row/column, font) and select the encoding (ANSI, Dos, ASCII, etc.) in the HEX Editor;
  • It is now possible to set the number of rows displayed before the current offset has been added to the HEX Editor window;
  • It is now possible to set the byte order for the data (little endian, big endian) which by default has higher priority over the byte order;
  • Now HEX edits are shown in the structure viewer;
  • The recalculation of the GPT checksums while saving changes have been added;
  • Drag'n'Drop + Ctrl copying has been added;
  • New API scripts have been added;
  • Hex-editor window now has bookmarks (accessible from the context menu and via hotkeys);
  • Hex-editor window now supports clipboard operations (copy/paste);
  • The ability to select the structure template that will be used to interpret the data has been added to the view mode;
  • It is now possible to turn off the autodetection of the structure template by data. In this case, the structure template that is active at the moment of turning off the autodetection will be used to interpret the data.

Reference books integration

• The ability to integrate user RAW and Grep lists of expressions with the new reference book from the 6.5.9x software has been added. Right after the installation, you will have two options: to integrate them or to replace the previous version with the newest one by default.

Bitlocker

• The output of the information based on metadata has been added (PC name, BitLocker key GUIDs);
• Partitions without password (with a Clear Key) are now added automatically (without a password-entry form);
• The capability to specify a map of the unencrypted Bitlocker sectors has been added for the cases with partial encryption/decryption.

File systems

• The initial support for the DVR DHFS4.1 file system has been added.

NTFS file system

• The support for EFS has been added. The automatic search for a security certificate (if there is one in the drive partitions) has been implemented;
• The methods of analysis have been significantly accelerated due to optimization of the work with the database;
• The algorithm of the found structures analysis has been changed for the case of finding a large number of boot sectors;
• The mask for the MFT records in metadata has been increased.

HFS+ file system

• The analysis has been accelerated, the support for the HardLinks for directories has been added.

EXT file system

• The methods of analysis have been significantly accelerated due to optimization of the work with the database.

FAT file system

• The algorithm for analyzing the partition and finding structures for the priority of the found file descriptors and directories was changed (dates, deletion sign). In the previous version, an incorrect accounting of these data sometimes led to an incorrect tree construction.

ExFAT file system

• Root, FAT table, bitmap, volume have been added to the metadata map.

BtrFS file system

• The work with the preallocated extents has been enhanced.

RAID Edition

• The support for the Apple Fusion Drive has been added;
• The method for determining the type of service blocks (XOR, RS, HS) and their parameters (for RS) has been added to the matrix on the form of creating a new RAID. The method works on the basis of RAW recovery results on each drive (before starting the method, we recommend to first find the "characteristic" histogram in the "RAID Participant Statistics" mode and specify the basic parameters in accordance with this histogram);
• The sorting in the Windows Explorer by the Start and Size fields has been added.

PC-3000 SSD

Silicon Motion

SM2246XT controller:

• The following drives have been added to the Support List:
  • Silicon Power Slim S55
  • Silicon Power Slim S60
  • CFast Lexar Professional 3400x
• The loader microprogram has been improved;
• The translator building algorithm has been improved for the cases when service data is written as user pages;

SM2258 (G, H) controller:

• The following drives have been added to the Support List:
  • ADATA SU800
  • Plextor S2C

SM2246EN controller:

• The following drives have been added to the Support List:
  • RevuAhn 850X
  • RevuAhn 880K
  • RevuAhn 900T PRO
  • Corsair Force LX

All SM22xx controllers:

• The resource backup algorithm has been improved in connection with changes to the Kernel of the PC-3000 software;
• The new "Reading of Service Blocks" test has been added;
• The view of the report on the Memory Chips has been changed;
• The short system information output has been added to the Utility starting log.

Phison

PS3110 controller:

• The translator building algorithm has been enhanced for SSD drives which are using Interleave within 4 blocks;
• The translator building algorithm has been enhanced for SSD drives which have a number of blocks for LUN higher than 0x10000;
• Repairing functions for PS3110-based SSD drives have been added.

PS3111 controller:

• The following drives have been added to the Support List:
  • Smartbuy Revival 2
  • Patriot Spark
  • Kingston A400
  • GOODRAM CX300
  • Silicon Power Slim S55 (PS3111)
  • Lite-On MU3
  • Silicon Power Slim S60
  • GOODRAM S400U
  • Smartbuy S11
• The translator building algorithm has been enhanced for SSD drives which have the number of blocks for LUN higher than 0x10000;
• The S.M.A.R.T. parameters editing feature has been added;

All PS31xx controllers:

• The resource backup algorithm has been improved in connection with changes to the Kernel of the PC-3000 software;
• The feature to view the list of bad blocks has been added to the all PS-based Utilities.

国际公认的数据恢复旗舰PC-3000 Express已经更新。随着其他的改进，修订的PC-3000 Express Rev.2.0具有更高的可靠性和创新的HDD电源管理。。 新型PC-3000 Express Rev.2.0的主要功能 具有示波器功能的新智能电源管理单元可实现更高效的HDD诊断。 示波器功能为您提供最准确的信息进行实时监测的电流和电压的可视化图形，并确定损坏的硬盘的根本问题。 所有的新功能将从新的PC-3000软件版本6.3开始。 1：串行SATA 3.0 GB/Sec网桥的新电路设计。 2：电源方案已经修改，提高了数据传输速率，提高了SATA端口的稳定性。 3：SATA电源连接器已经取代了旧的4针PATA电源连接器，确保与现代PC电源单元更好的兼容。 PC-3000 Express的新智能电源单元有一个小型的哔哔声扬声器，可以提醒您有关PC的电源单元或提供给HDD的过电流的问题。在过电流的情况下，保护装置被激活，相应的电源通道关闭。

最近一个课题为“关于自加密硬盘数据恢复的突破性进展及PC3000产品设备的优势”的研讨会在捷克首都布拉格举行，ACE的工程师和研发人员正在展示很早以前客户就期望的创新. 所有这些创新在这次软件更新上就可以实现了。 这次的升级包含了革命性的功能突破，可以支持从希捷F3自加密硬盘、RAID磁盘阵列、虚拟机、window存储空间中恢复数据. 现在所有正版授权的用户都将可以获得最新版Pc3000的安装程序 。 以下英文，日文， 中文的PC3000 软件安装程序现在正式对外释放！ PC-3000 Express/UDMA-E/Portable Ver. 6.1.12 Data Extractor Ver. 5.4.1 Data Extractor RAID Edition Ver. 5.4.1 PC-3000 SSD Ver. 2.0.3 以下是最新程序的新增功能 For PC-3000 Express, UDMA-E, Portable WD Marvel · 支持 TRESXLB, TRESXLB2, GIANT2, HUBLT2 家族 · 增加 “通过p表禁用区段和磁头”功能 · “加载LDR”模式 得到提升（最新程序中直接有快捷菜单实现该功能而不是之前的一个对话框） · LDR文件加载中加入了 加载缓存覆盖的功能 （也就是加载10模块） · “目录编辑模式”功能改进，最新程序中新增加一个菜单可以直接选择服务区的空闲区域 · 新增加"移动/调整模块大小"功能 · 增加03模块恢复功能 · 增加硬盘缓存清除模式 Seagate F3 · 在DE里“激活程序”功能可以自动解锁技术模式 · 可解决 Grenada 家族的技术模式锁死问题 · 新增加对 Lombard 和 Megalodon 家族的技术模式解锁功能，以前 Lombard 和 Megalodon 家族硬盘的技术锁导致终端指令不能使用，并且这种加密模式同时也导致硬盘ATA命令无法访问，这种硬盘会返回以下这种错误 "... 0: 0: 0 (0/1) err = 0x00000001" · 新程序中的解密功能可以从程序开始的对话框中实现，也可以从“技术指令”菜单中执行。现在新程序已经可以处理这种终端加密的问题了。 · 新程序支持从程序开始对话框中和程序菜单自动设置硬盘ID，用户可以在程序设置中对ID进行更改 · 现在对模块工作更方便更容易，程序中的“跳过不重要模块”的功能会跳过包含50-53以及一些其他会导致硬盘变成BSY状态的模块。 · 改进rom 重写模式得到 目前Seagate F3 亮点是可以解锁新款硬盘指令被锁死！ 一直被同行业模仿，技术走在最前沿，始终未被超越。 选择PC-3000全系列数据恢复司法取证工具是您明智的选择！ Toshiba · 程序增加对东芝USB硬盘的支持 · 支持 MQ01UBD, HDWJ1, HDWE1 硬盘家族 · 修复物理扫描bug · 禁用区段和磁头模式得到改善，操作起来更方便 · 通过程序功能读取数据时候，硬复位执行技术模式初始化 PC-3000 Kernel · 在新版本程序中限制每个程序配置文件的算法得到提升。从现在开始，删除的配置文件数据会被保存到配置文件夹中。当用户下次使用相同的硬盘时，这些数据会被自动加载 · 程序用户界面变得更合理。 日志窗口和十六进制编辑器窗口可以被移动到任意合适位置 · 缺陷编辑器得到改良，现在用户可以进行排序筛选，用户可以方便的使用鼠标来选择多个缺陷 Win7 磁盘实用程序 · 驱动程序现在支持验证命令 · 可以监测读取/写入 的速度 Data Extractor · 操作 十六进制窗口，位图窗口，和状态栏，变得更方便，现在用户可以随意改变他们的顺序和位置. · 支持使用拷贝创建任务并自动存放到建立好的VHD或VHDX中，这个选项适用于Windows 7 32x (VHD), Windows 8 和更新的版本 (VHD or VHDX)。总而言之，新程序中创建任务及打开虚拟磁盘的机制变得更优化 · 新程序支持为虚拟磁盘添加文件名 · 现在用户可以在NTFS分区格式下把磁盘的整个镜像做成一个文件。 · 新程序中用户可以手动把当地用作目标盘的磁盘“ 脱机离线”。这样的话目标盘就不会受操作系统控制了 · 快捷菜单已更改 解决了快捷键初始化问题 · 原本的“添加虚拟磁盘”选项被添加到快捷菜单中，这样就方便了对虚拟机文件进行打开操作。可以支持（VHD,VHDX,VMDK,DMG,E0X,AFF等） · 支持 苹果的虚拟磁盘 (DMG)，可以根据父文件系统的文件及文件夹的位图来创建虚拟磁盘 · 当保存数据时，用户可以使用文件完整性控制选项，错误会以日志的形式保存 · 处理 GUID 分区表更方便 · 在目标位图模式中，支持直接进入相应的位图或者选择离开该模式 · 在擦伤恢复模式中，可以清除所有的结果 · 可以根据位图（磁盘位图 等）对系统制作“快照” · 在创建目录位图模式中，可以统计数据量（文件夹数量，文件数量 等） 以日志形式报告 · 可以以 .csv格式输出标记文件和文件夹的位图 · 可以 在磁头位图选项 对标志进行 选择/禁用 和转换 操作 · 数据输出以 E01, S01, AFF, RAW 格式的速度大大提升 · 自动保存任务参数到 Stat_0.txt 的文件中，这个文件在任务运行时可以打开 · 没有存储数据的文件的第一个扇区被禁止访问 · 浏览模式中采用新的方法“搜索和分析文件系统结构” · Ext 文件系统的分区位图结构被更改 · ExFAT 文件系统，增加新功能 ("分区分析" 和 "搜索 ExFAT 结构") · Ext(2,3,4) 文件系统： "分区分析" 的算法得到提升 Data Extractor RAID Edition · 支持window存储空间 o 支持不同的硬盘空间类型 o 增加根据冗余校验来恢复数据功能 o 增加成员盘设置功能（对成员盘中有损坏的数据进行踢盘处理） · 在RAID创建时可以选择 RS (Reed-Solomon) 多项式 · 增加创建虚拟机磁盘并且根据这些硬盘上的数据，在交互模式下检测RAID参数 For PC-3000 SSD 三星 SSD · 支持 850 系列 (850 PRO) 家族 · 支持 CM871 family 家族 · 支持 840 EVO 家族 miniSata 和 M.2 接口类型 · 添加 840 系列 SSDs DXT43L0Q_LD 的Loader · 支持基于 TSOP-56 微芯片的 MLC SSDs Marvell Van Gogh SSD · 支持以下家族 o Crucial M550 o Crucial MX100 o Crucial MX200 · Micron C400 SSDs 程序中增加"Refresh TCG Tables" 功能 · 可以执行以下操作 o 备份资源 o 读/写 ROM o 读/写 微码 o 读/写 SA 模块
